The joist pedestal for wooden decking is a height-adjustable support
designed for installing wooden or composite decking. The L-shaped pedestal
head accommodates the joist.
COMPOSITION
The GLOBAL PROBAT JOIST PEDESTAL is designed to support joists for pedestrian-accessible wooden or
composite decking. It can also be used to create terraces on non-waterproof surfaces.
The pedestals are composed of:
1. A load distribution plate of 314 cm² placed on waterproofing or directly on concrete.
2. A height-adjustable screw with a 113 cm² slab support head and an L-shaped head to hold the joist
3. A nut for micrometric adjustment (excluding 25/40 pedestal)

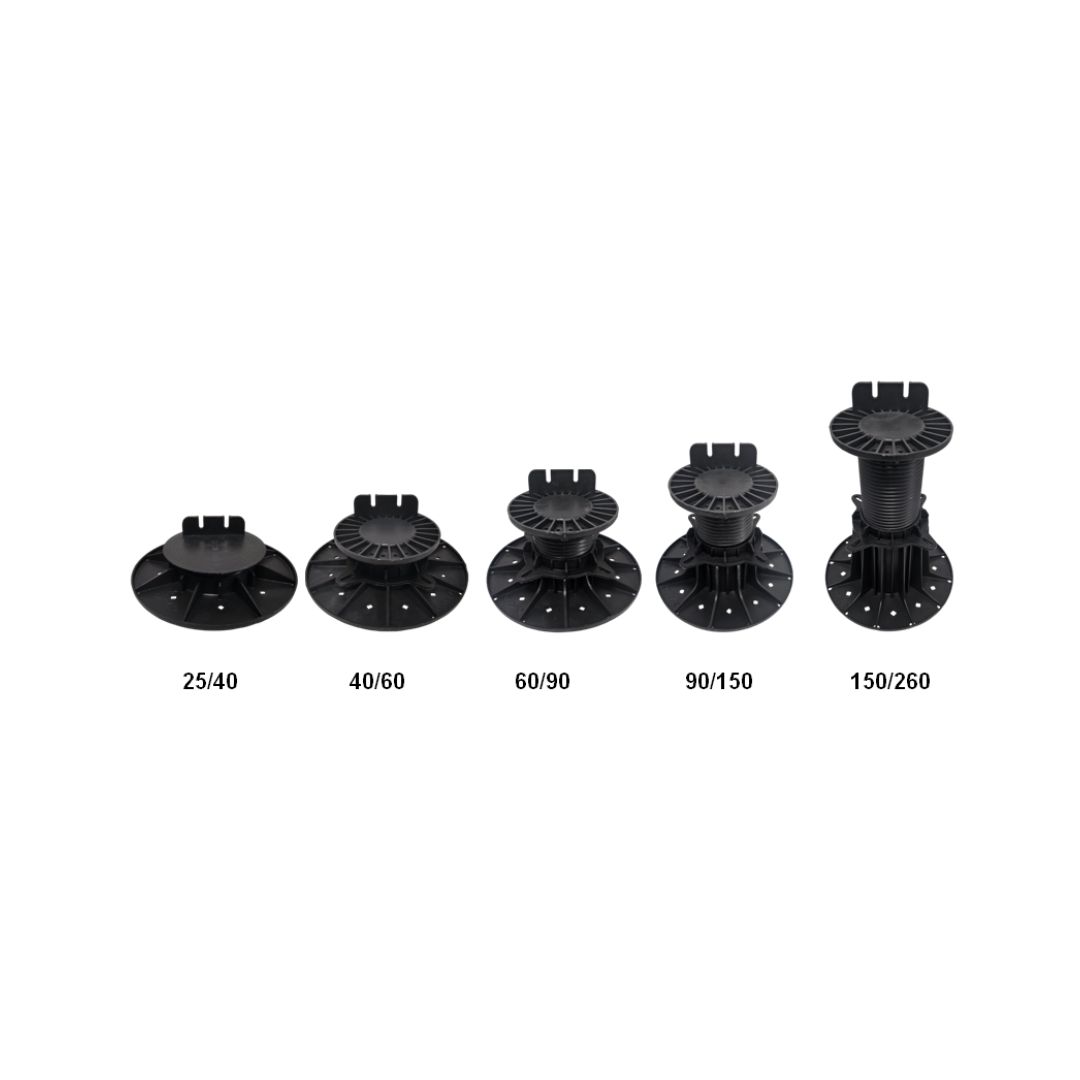

RANGES
| PEDESTAL HEIGHTS | Pedestals |
| From 25 to 40 mm From 40 to 60 mm From 60 to 90 mm From 90 to 150 mm From 150 to 260 mm |
Height = distance between the bottom of the load plate and the top of the screw (excluding fins)
TECHNICAL CHARACTERISTICS
| PEDESTAL | |
| Material | Filled Polypropylene |
| Sections compliant with DTU 43.1 Base Head |
>300cm² >100cm² |
| Operating temperature | -30°Cà+ 70 °C |
| Uniform load distributed across the entire pedestal surface |
5KN |
PACKAGING
| Height | Packaging | ||
| ADJUSTABLE RISER PEDESTAL FOR JOISTS |
From 25 to 40 mm | 84 pcs / box | 20 box/pal |
| From 40 to 60 mm | 56 pcs / box | 20 box/pal | |
| From 60 to 90 mm | 44 pcs / box | 20 box/pal | |
| From 90 to 150 mm | 30 pcs / box | 20 box/pal | |
| From 150 to 260 mm | 24 pcs / box | 20 box/pal | |
